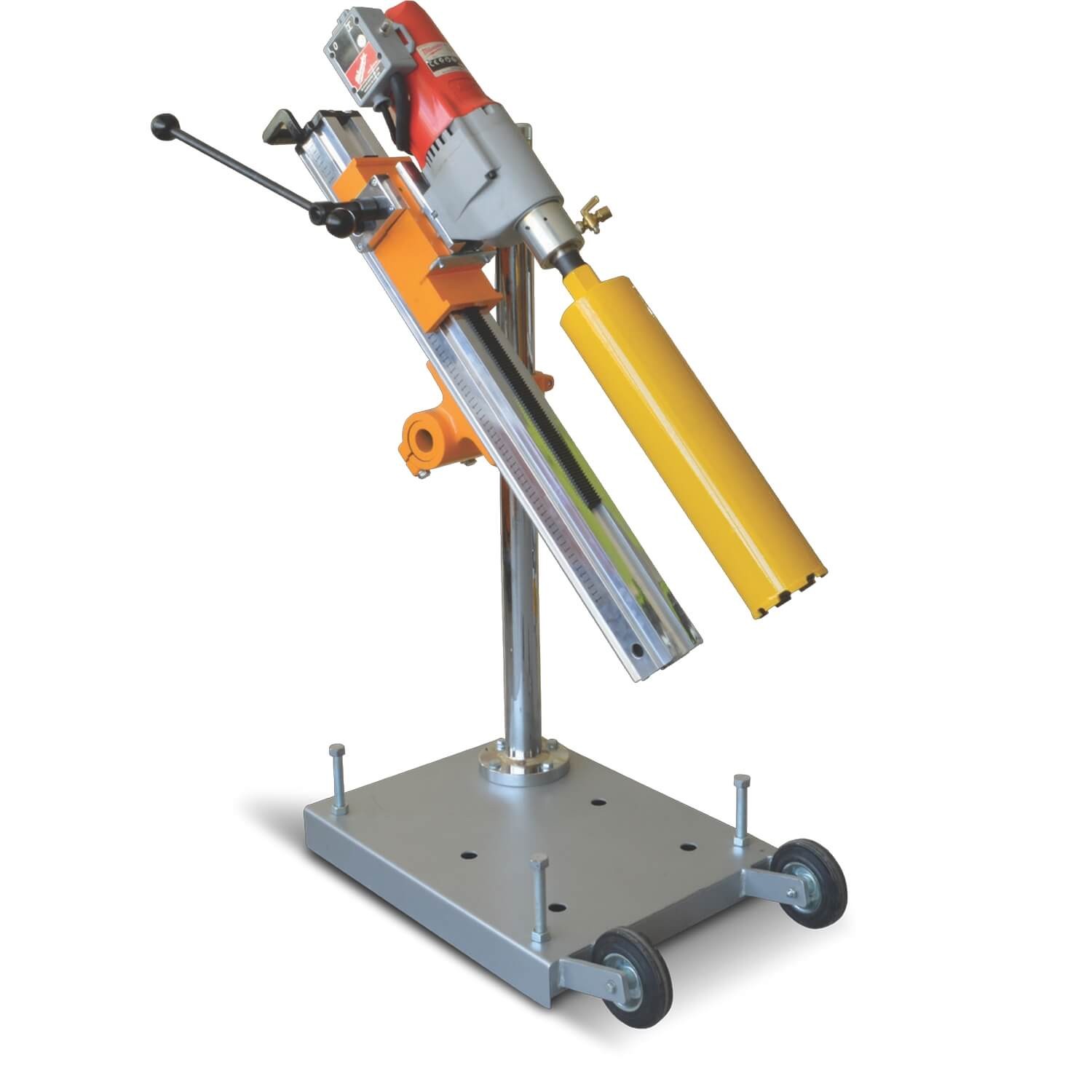

CORING MACHINE, Electrical

CODE : B061
  • Used to take core samples from irregular rocks or to extrude the core from specimens for test purposes.
  • Standard 1 ¼” thread

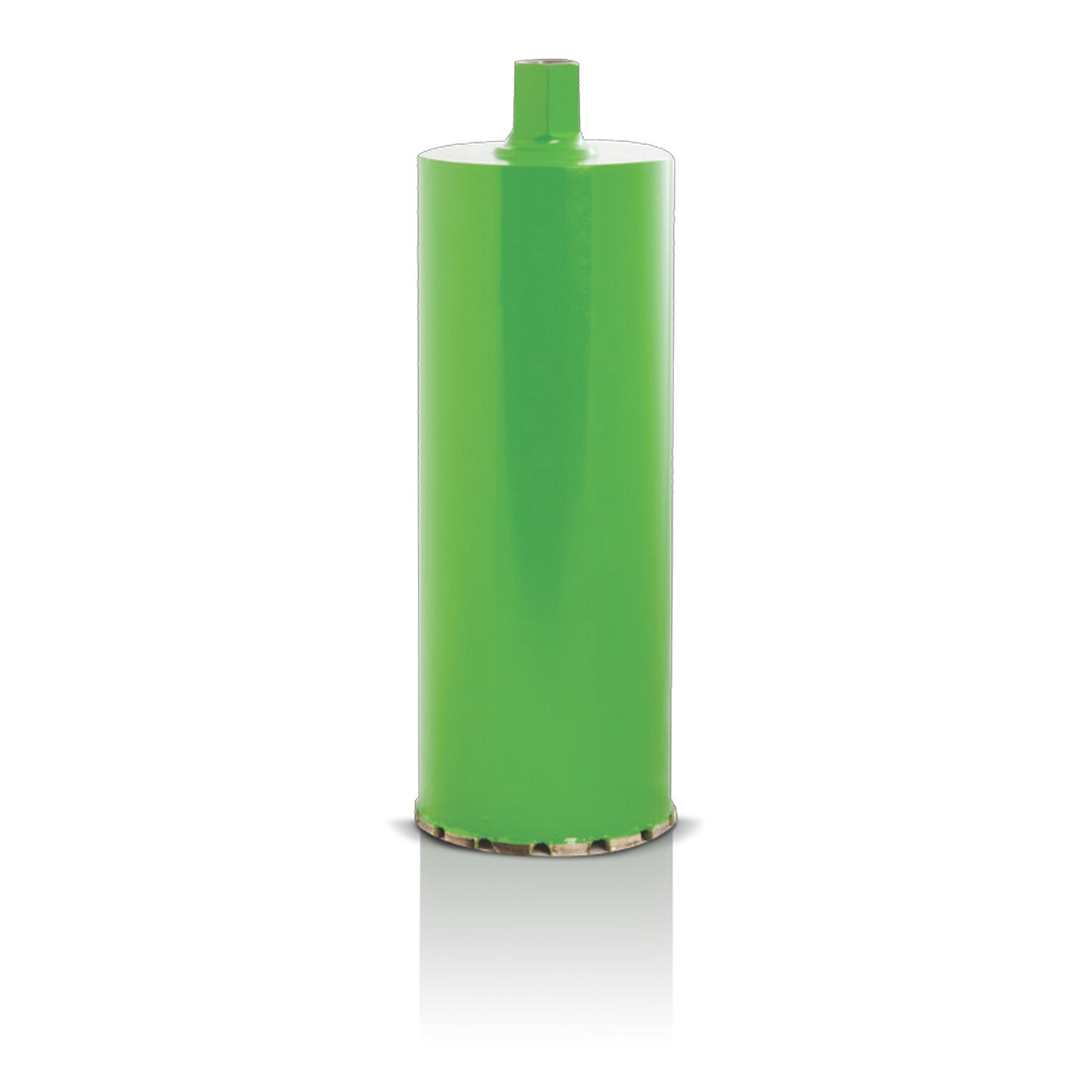

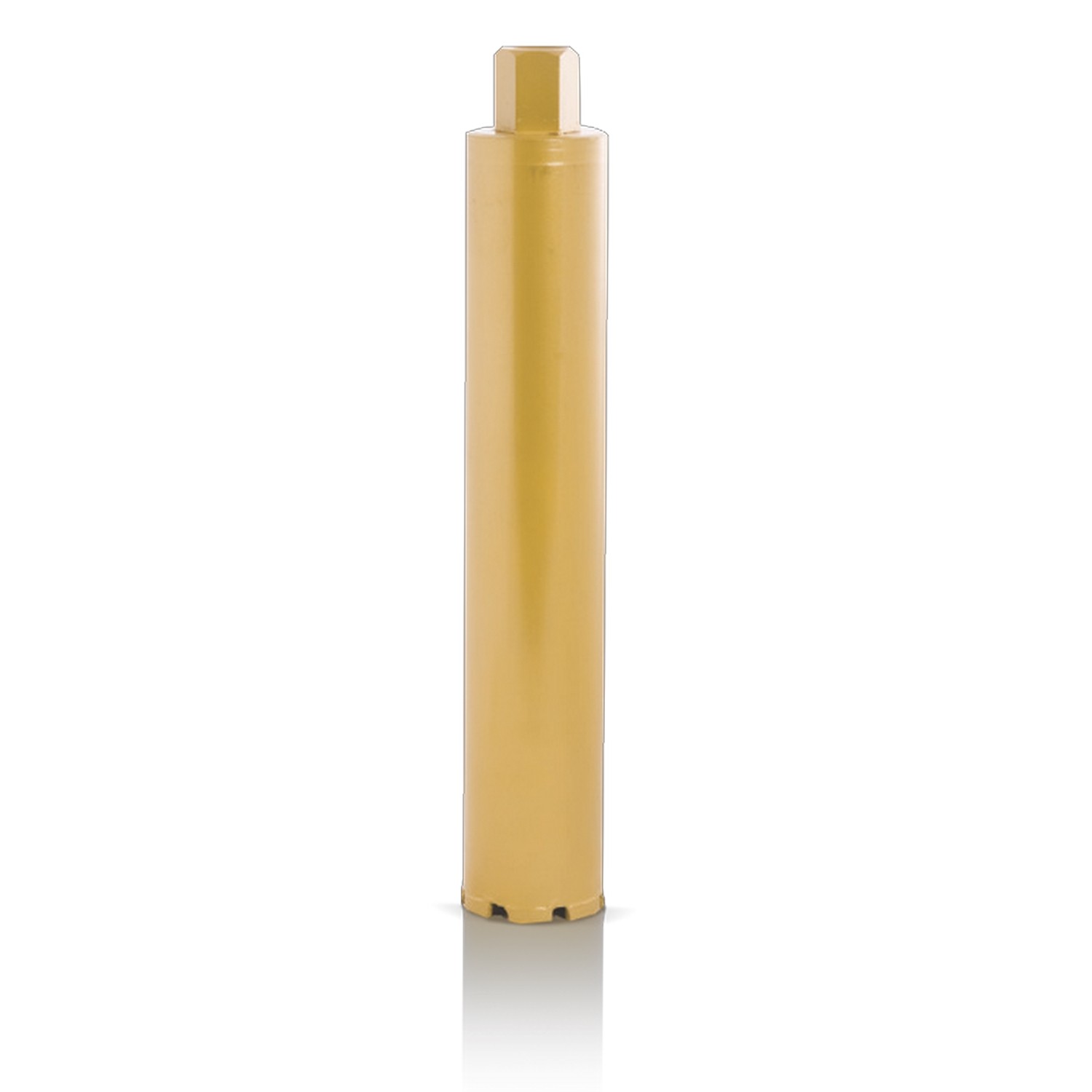

  • Core Bits should be ordered separately

PRINT DATASHEETprintcard

ADD TO QUOTEaddtoquotecard

entry
entry
entry
entry
TECHNICAL SPECIFICATIONS
ORDERING INFORMATION
TECHNICAL SPECIFICATIONS
  • Power input : 2500 W
  • Rated Speed : 450 rpm
  • Max. drill : Ø 162 mm
  • Water inlet
  • B-061/R model can rotate from 0° to 89°
  • Standard 1 ¼” thread for bits
  • 220 - 240 V / 50 - 60 Hz
